Co-Extrusion Snack Machine

Home » Products » Expanded Food, Baking Snack Machinery » Co-Extrusion Snack Machine
Co-Extrusion Snack Machine

Co-extrusion snack machine is a new type of puffed food processing line which is studied and developed by ourselves on the basis of learning from advanced technology in the world. As a result, its performance and quality both reach to the advanced level in the world. Co-extrusion snack machine can finish mixing, extruding, shaping, core-filling, cutting, spraying and producing at one stroke automatically. It can be divided into various types and can be configured flexibly, and it can use different types of raw materials to produce different snacks). Through changing the dies and production techniques, this co-extrusion snack machine can produce pillow-shaped, cylinder-shaped, cake-shaped and oblong-shaped products. Hence, it is ideal for food making enterprises of all sizes.

Sample Display

Parameters
Model Installed Power Power Consumption Output Size
LT65 84KW 59KW 120-150kg/h 21000x1200x2200mm
LT70 132KW 92KW 200-250kg/h 23000x1500x2200mm
LT85 239KW 167KW 500-700kg/jh 28000x3500x4300mm
LT90 257KW 180KW 800-1000kg/h 29500x3500x4300mm
FT75 186KW 139.5KW 400-500kg/h 24000x2000x2800mm

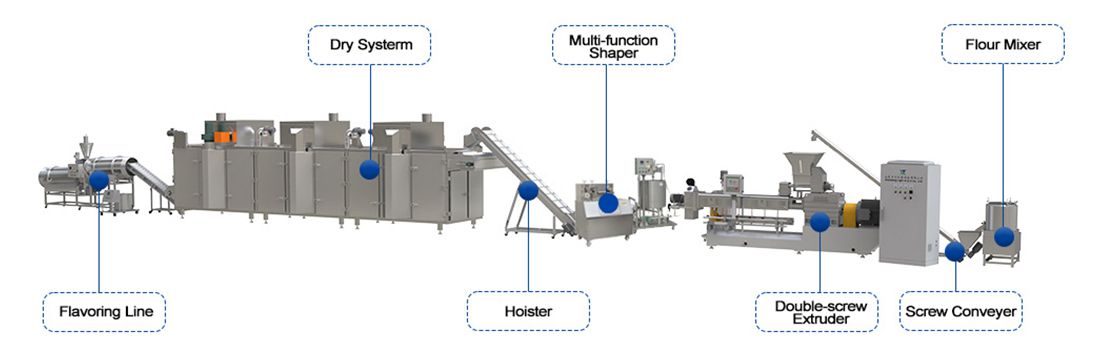

Flow Chart

LIGHT co-extrusion snack machine includes the following parts and components.
1. Flour Mixer
2. Screw Conveyor
3. Twin Screw Extruder
4. Core Filling Machine
5. Multi-function Shaping Machine
6. Elevating Conveyor
7. Continuous Belt Dryer

Are you satisfied with our snack machines? In addition, we can also provide various other food processing lines such as vacuum fryers, food cutters, seasoning machines, breading crumb processing machines which are CE certified and widely used in various kinds of food processing industries. We hope that they will meet your demands. We are here to be in the service of you wholeheartedly!
