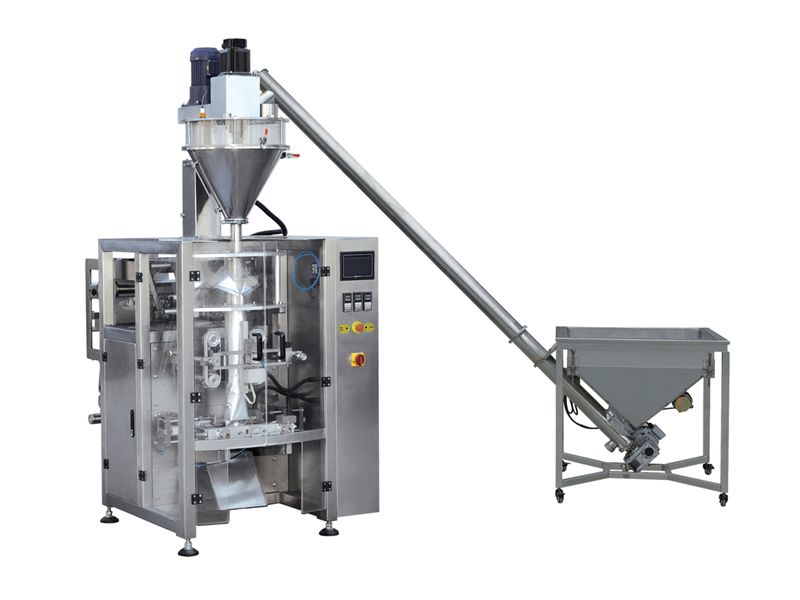

Powder Packing Machine
Powder Packing Machine
Powder packing machines are widely suitable for packing products of food, medicine, chemical industry and pesticide in mesh sizes ranging from 120 to 400mm automatically, such as food additives, milk powder, soya powder, bean powder, albumen powder, medical powder, cosmetic powder and slimming tea powder etc.
All the processes of measuring, making, filling, sealing, code printing, cutting and counting etc. can be done automatically.
Main Features
- The machine has the features of simple construction, reliable circulator and easy maintenance, high precision, high efficiency and no crashing the materials.
- The machine adopts the screw pole putting material, adopting servo-code and the microcomputer technology control.
- Code simultaneous control, sensitive action, low noise, outstanding, reliable measure, speed quickly, high precision. It also can display the measure counter.
- Famous brand PLC control system, wide version touch screen, convenient to operate.
- Check weigher, metal detect machine and finished product conveyor are optional for customers.
Specifications
| Model | LT420 | LT520 | LT720 |
| Capacity | Max 70bags/min | Max 60bags/min | Max 30bags/min |
| Bag Size | Width:60-200mm | Width:100-250mm | Width:150-350mm |
| Length:60-300mm | Length:80-350mm | Length:100-450mm | |
| Max Film Width | Max 420mm | Max 520mm | Max 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.04-0.09mm |
| Power Source | 2.2kW 220V 50HZ | 3kW 220V 50HZ | 4kW 220V 50HZ |
| Air Consumption | 0.8Mpa 0.5m3/min | 0.8Mpa 0.6m3/min | 0.9Mpa 0.7m3/min |
| Dimension (L×W×H) (L×W× H) | 1400 x 970 x 1600 mm | 1430x1200x1700mm | 1780 x 1350 x 2000 mm |
| Weight | 450kg | 650kg | 800kg |
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
