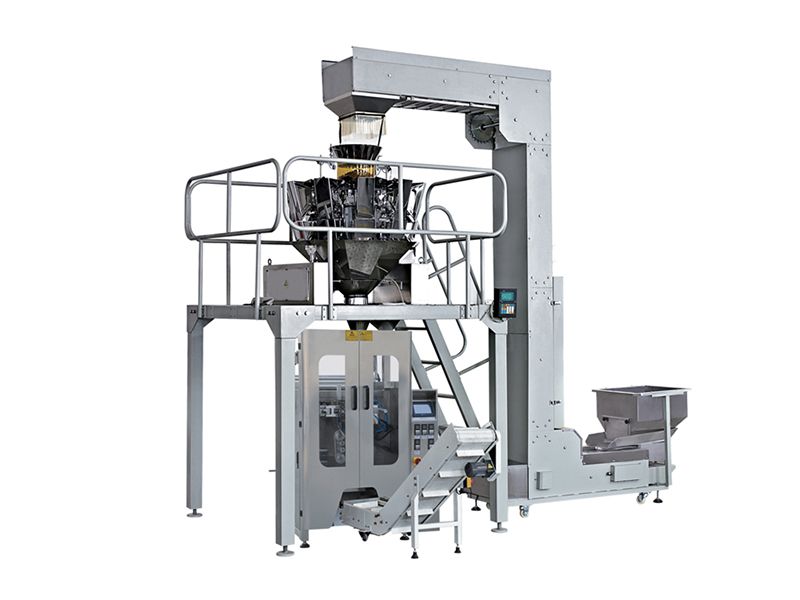

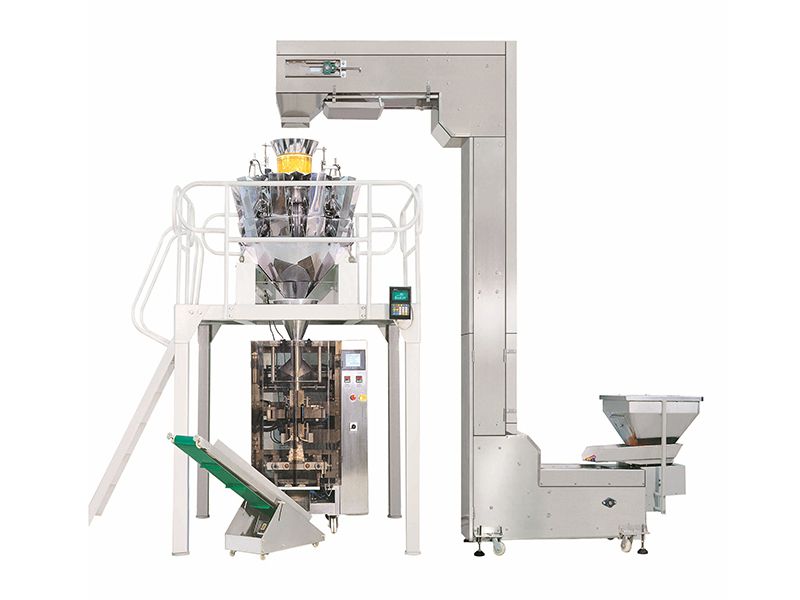

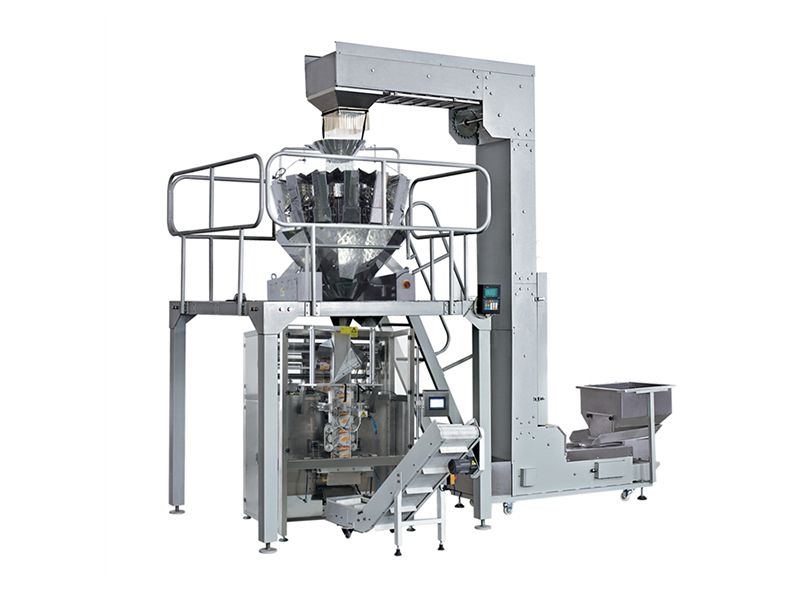

Multi-head Weigher Packing Machine

Multi-head Weigher Packing Machine
  • Multi-head Weigher Packing Machine
  • Multi-head Weigher Packing Machine
  • Multi-head Weigher Packing Machine

    • Multi-head Weigher Packing Machine

    This multihead packing machine is designed for packaging, dosing and weighing regular and irregularly shaped materials, such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.

    This packing machine is equipped with precision digital measuring device, and its operating system comes with LCD display screen and can display operations in multiple languages, including English, Russian, German, Spanish and Italian, etc.

    Request a Quote
    Main Features
    • IP65 waterproof and dustproof design. It's easy to clean and maintain.
    • Able to self-adjust during running.
    • Operation menu available to make you study and operate it more easily. The multihead packing machine is also designed with automatic data statistic function.
    • Optional configurations of this multihead packing equipment include printing equipment, suction hopper, and more.
    • High compatibility and compact structure.
    • This vertical packing machine can greatly save on materials and labor cost.
    • It automatically complete conveying product, measuring, bag-forming, filling, blowing nitrogen, date and code printing, cutting, finished product delivery
    • Famous brand PLC control system, wide version touch screen, convenient to operate. Film drawing down system and horizontal sealing controlled by servo motor; Multi-head balance can well assure the accurate weight of each package
    • Various package sizes can be made, by changing the former, the packing length is adjustable, Nitrogen filling device can be added.
    • Packing material: any laminated film such as POPP/CPP, POPP/VMCPP, BOPP/PE, PET/AL/PE, NY/PE, PET/PET, etc.
    Specifications
    Model
    LT-420
    LT-520
    LT-720
    Capacity Max 70bags/min Max 60bags/min Max 30bags/min
    Bag size Width:60-200mm Width:100-250mm Width:150-350mm
    Length:60-300mm Length:80-350mm Length:100-450mm
    Max film width Max 420mm Max 520mm Max 720mm
    Film thickness 0.04-0.09mm 0.04-0.09mm 0.04-0.09mm
    Power source 2.2kW 220V 50HZ 3kW 220V 50HZ 4kW 220V 50HZ
    Air consumption 0.8Mpa 0.5m3/min 0.8Mpa 0.6m3/min 0.9Mpa 0.7m3/min
    Dimension (L×W×H) L1400 x W970 x H1600 mm L1430 x W1200 x H1700 mm L1780 x W1350 x H2000 mm
    Weight 450kg 650kg 800kg

    As a packing machine manufacturer and supplier in China, we can also manufacture grinding machine, drying equipment and many other types of food processing equipment. We welcome you to contact us for more information. We are confident that we can provide you the food equipment you are looking for.

    Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
