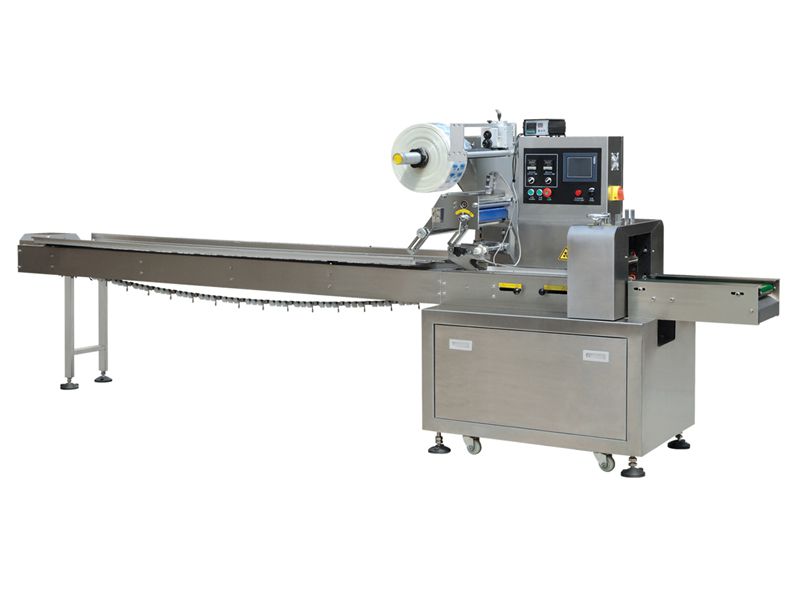

Horizontal Flow Wrapping Machine
Horizontal Flow Wrapping Machine
Main Features
- This horizontal packing machine can set the bag length automatically, which saves on labor force.
- Dual variable frequency control system provides the packing equipment with characteristics like simple maintenance, low wearing and long service life.
- Single chip control, touch screen display, variable frequency control, user-friendly human-machine interface, etc. makes the packing machine convenient and simple for operation.
- Independent temperature control for each sealer enables the horizontal packing machine to create beautiful and tight sealing.
- The horizontal packing equipment is suitable for a wide variety of materials, including bread, biscuit, candy, mooncake, hardware parts, and so on.
Specifications
| Model | LT-250 | LT-350 | LT-450 |
| Film width | Max.250 mm | Max.350mm | Max.450mm |
| Bag-making length | 65-190 or 120-280mm | 65-190 or 120-330mm | 90-220 or 150-330mm |
| Bag-making width | 30-110mm | 50-160mm | 100-260mm |
| production height | Max.40 mm | Max.40mm | Max.60mm |
| Film roll diameter | Max.250mm | Max.320mm | Max.320mm |
| Packaging speed | 40-230bag/min | 40-230bag/min | 20-200bag/min |
| Power specification | 220V/50HZ. 2.5kW | 220V/50HZ. 2.8kW | 220V/50HZ. 4.2kW |
| Machine Dimension (L×W×H) | 3770*640*1400mm | 4020*770*1450mm | 4380*870*1500mm |
| Machine weight | 500kg | 650kg | 800kg |
Our machinery design department and technology department are comprised of experienced engineers and food production equipment designers. LIGHT food processing machinery, animal food machinery, food extruders, etc. are used widely in the field of food processing, and we also provide customers with total food-production and processing solutions. We take pride in our ability to provide newer, better equipment to our customers to handle their ever changing needs.
